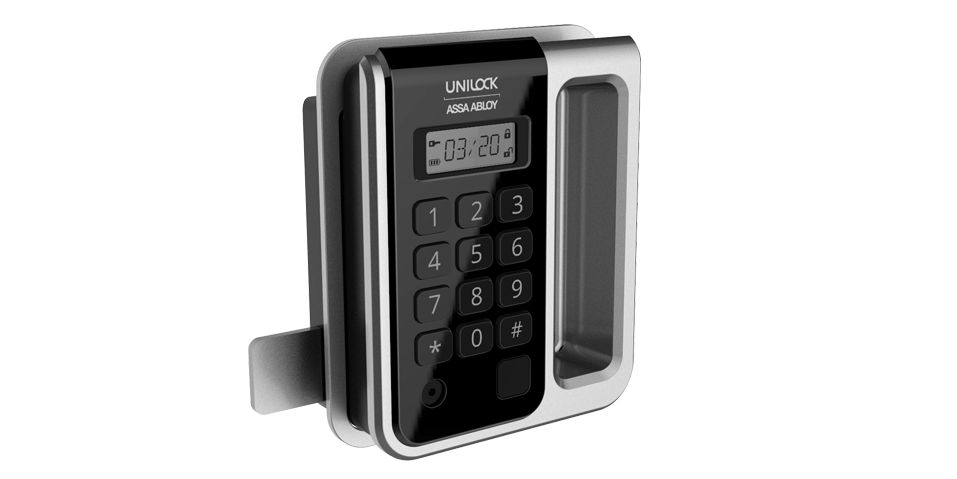

B11PS/B21DS

Embeded integral type Digital lock which is specialized for unmanned delivery box

· Feature

• Digital lock for delivery box
• Status display on LCD such as storage time, lock / unlock etc
• Including handle for the convenience
• Strengthen security by RFID management key level
• Support for hook type cam (Option)
• Emergency power supply by 5pin USB connector
• Emergency opening solution by minimizing damage

· Specification

• Size : 101(H) x 82(W) x 43(D) mm
• Material : ABS (Body), Steel (Cam)
• Temperature : -20˚C ~ +70˚C
• Humidity : 0 ~ 90% RH
• Master key : RF tag (RF key 1~20ea) & Passcode (1ea, 4~12digits)
• User key : Passcode (1ea, 4~12digits)
• RF Spec (Only for RF model) : 13.56 MHz Mifare Classic, DESFire EV1, Ultralight
• LCD Spec : TN, 26 x 10mm Viewing Area, 5 Digit Texts, 4 Icons, Active Backlight
• Battery spec : AAA Alkaline battery 3ea (Use for 1year based on 10times/day)
• Online power type model separately
• Door Thickness : 15 ~ 20mm

· Usage

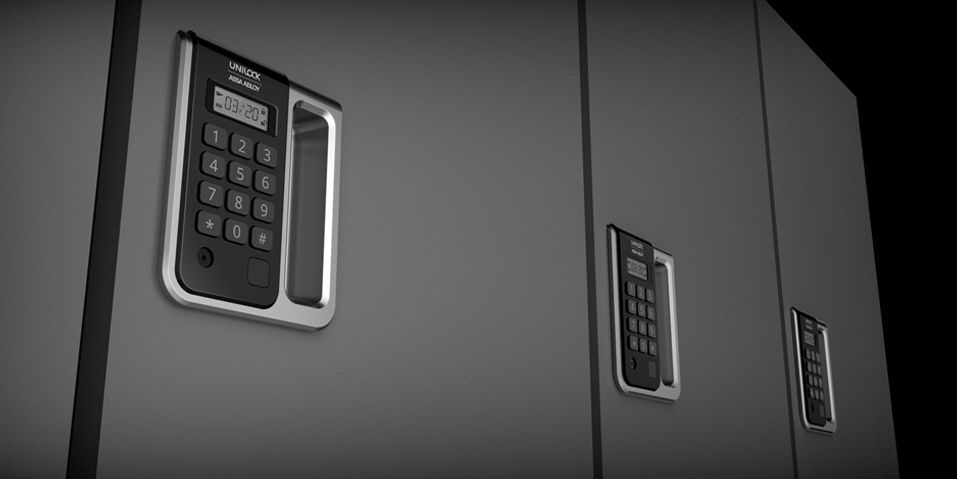

• Unmanned delivery box

· Function & Color of product can be changed without notice
· The life span of the battery may vary depending on the battery model, ambient conditions (temperature, humidity, etc.), and frequency of use.
